型號： K42

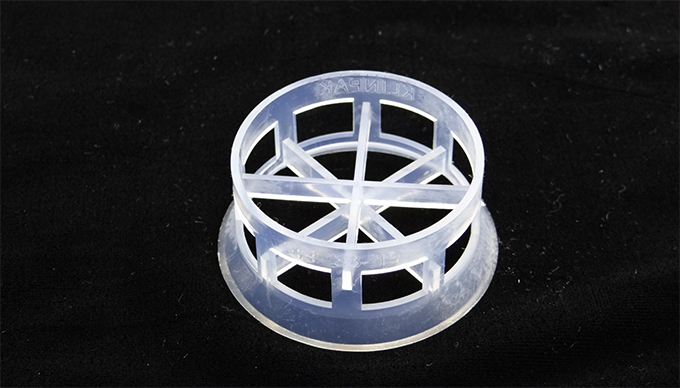

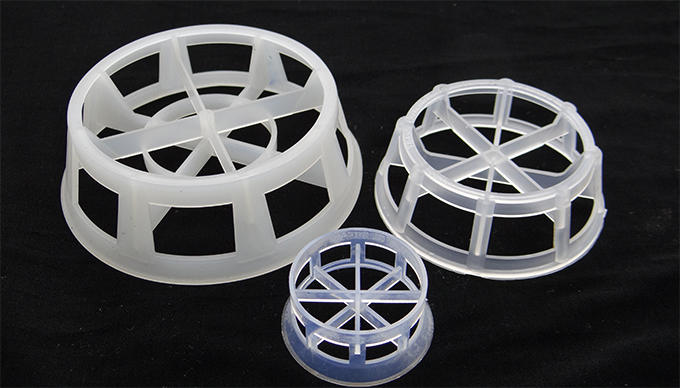

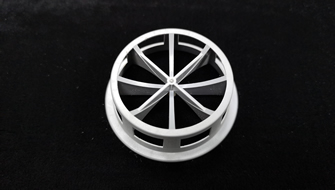

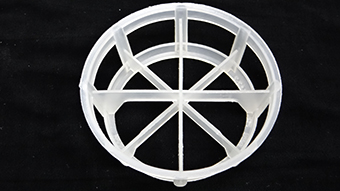

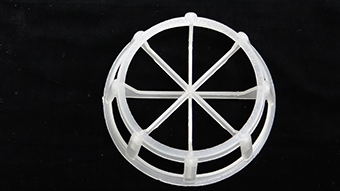

品名： 階梯環 PLASTIC (MINI-POLRING) TYPE





PHYSICAL CHARACTERISTICS
Type
NO.
 Demensions
mm 		Packing
Factor
F(1/ft)		 Std. Bulk
Density
(kg/m3) 		Surface Area
比表面積
(m2/m3) 		VOID SPACE
空間率
%		 (Pcs/m3)
充填個數
0A 38*30*13H 55 122 330 89 54,000
1A 50*39*17H 30 72 230 92
34,000
2A 78*61*25H 18 60 130 93   6,400
3A 104*85*32H 12 47 79 95
  4,500
※Under conditions of "Random dumping". (於不規則充填時) for Plastic material.



塑膠充填物替換性能比較
Existing
既存充填物
 Revamped K42
替換後之K42		 After Replacement
At Same Through Put At Same Pressure Drop.
Kga Press. Drop Kga Through Put
1" PALL-RING NO.1A +8% -36% +35% +32%
1" PALL-RING NO.2A SAME -34% +23% +29%
2" PALL-RING NO.2A +14% -22% +30% +18%
3" PALL-RING NO.3A +29 -20% +44% +15%
