型號： K-CMR

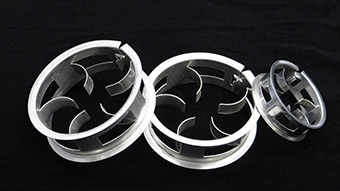

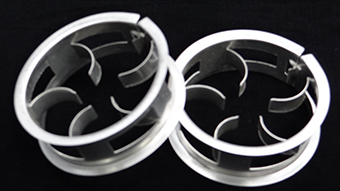

品名：階梯環 METAL CASCADE TYPE
PHYSICAL CHARACTERISTICS
| Normal mm |
Demensions mm OD*ID*H*THK |
Std.Bulk Density (kg/m3) |
Surface Area 比表面積 (m2/m3) |
VOID SPACE 空間率 % |
(Pcs/m3) 充填個數 |
F Factor m-1 |
| 0P | ø17*ø15*H6*0.3 | 472 | 427 | 94 | 530,000 | 55 |
| 1P | ø25*ø22*H8*0.3 | 270 | 230 | 96 | 150,000 | 40 |
| 1.5P | ø34*ø29*H11*0.3 | 201 | 198 | 97 | 60,910 | 29 |
| 2P | ø43*ø38*H14*0.4 | 230 | 164 | 97 | 33,170 | 22 |
| 2.5P | ø51*ø44*H17*0.4 | 186 | 127 | 97 | 17,900 | 17 |
| 3P | ø66*ø57*H21*0.4 | 139 | 105 | 98 | 8,800 | 14 |
| 4P | ø86*ø76*H29*0.4 | 143 | 90 | 98 | 5,000 | 10 |
| 5P | ø131*ø118*H41*0.6 | 136 | 65 | 98 | 1,480 | 7 |
